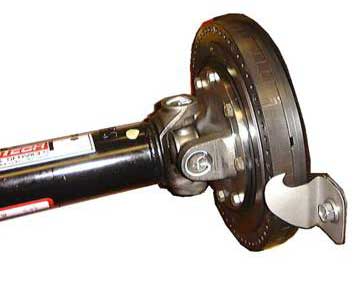

PATENTED TORSIONAL DAMPER




The patented model 1100 Torsional Damper assembly is the ultimate solution for smooth, reliable performance of your dynamometer test cell.

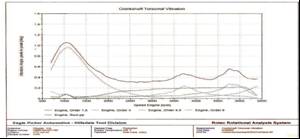

Before Damper


After Damper


Specifications:
  • Max Speed: 10,000 RPM
  • Weight: 33.6 Lbs.
  • Diameter: 11.0"
  • Thickness: 1 7/8"
  • Inertia: 3.7 Lb.-Ft2
  • Operating Temp: -35º - 250º F
  • Performance Mapping from Idle to 10,000 RPM
  • Replaces the dyno Flywheel
  • Completely self contained and rebuildable
  • Eliminates high amplitude torque pulses
